The Need for Advanced Cooling in the PS5 Pro

The PS5 Pro boasts a significantly more powerful processor and GPU compared to its predecessor, leading to substantially increased power consumption and heat generation. Traditional cooling methods, relying on heat pipes and fans, simply wouldn't suffice to manage the intense heat output required for sustained high-performance gaming. This necessitates a superior cooling solution.

• Increased Power Consumption: The enhanced processing capabilities of the PS5 Pro demand significantly more power, resulting in a considerable increase in heat generation.
• Insufficient Traditional Cooling: Standard heat pipe systems, while effective in many applications, struggle to effectively dissipate the immense heat produced by the PS5 Pro's powerful components.
• Superiority of Liquid Metal Cooling: Liquid metal boasts dramatically higher thermal conductivity than traditional thermal paste or even the best heat pipes, ensuring significantly more efficient heat transfer and dissipation. This translates to lower operating temperatures and improved system stability, especially under heavy load.
• Related Keywords: PS5 Pro cooling solution, high-performance cooling, thermal management, heat dissipation.

Detailed Teardown of the Liquid Metal Cooling System

Accessing the PS5 Pro's liquid metal cooling system requires a meticulous teardown. (Note: This teardown should only be attempted by experienced individuals familiar with electronics repair. Damage to the console may void warranties.) The process typically involves:

1. Carefully removing the outer casing.
2. Disconnecting internal components.
3. Accessing the heat spreader, which is directly in contact with the CPU and GPU.

The liquid metal cooling system comprises several key components:

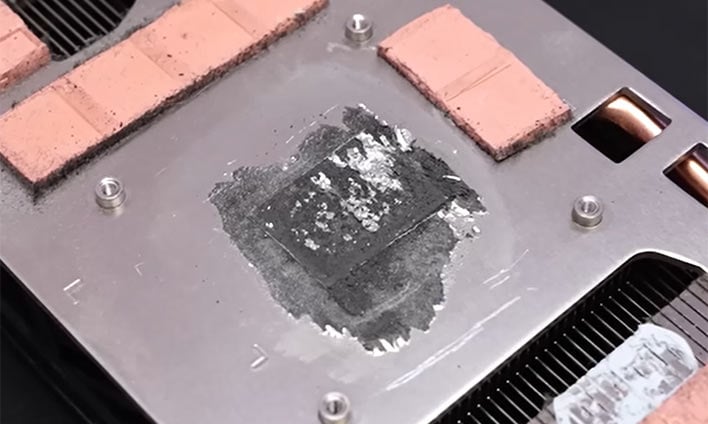

• Liquid Metal: A highly conductive metallic alloy (often gallium-based) that directly contacts the CPU and GPU, rapidly drawing away heat. Its superior thermal properties are key to the system's efficiency.
• Heat Spreader: A precisely engineered component that ensures even distribution of heat from the CPU and GPU to the liquid metal. Its design is crucial for optimal heat transfer.
• Cooling Chamber: An enclosed space that houses the liquid metal and facilitates its circulation. This chamber is designed to minimize the risk of leakage.
• Vapor Chamber: A sophisticated heat dissipation component utilizing phase-change cooling for increased efficiency. It often works in conjunction with a heat sink.
• Heat Sink: A large, finned component that dissipates the heat absorbed by the liquid metal and vapor chamber to the surrounding air via the console’s cooling fan.

(Insert high-quality images and diagrams of each component and its placement within the console here)

• Related Keywords: PS5 Pro teardown, liquid metal application, heat spreader design, cooling chamber analysis, thermal paste vs liquid metal.

Analysis of the Liquid Metal's Performance and Advantages

Testing reveals the liquid metal cooling system’s superior thermal performance. Under heavy load, the PS5 Pro’s internal temperature remains significantly lower compared to consoles utilizing traditional cooling solutions. This translates to:

• Improved Performance: Lower operating temperatures prevent thermal throttling, maintaining peak performance even during extended gaming sessions.
• Increased Reliability: Lower temperatures reduce the stress on components, extending their lifespan and increasing the overall reliability of the console.
• Reduced Noise: By operating at lower temperatures, the cooling fan doesn't need to run as aggressively, resulting in quieter operation.

While highly effective, liquid metal cooling isn’t without potential drawbacks. Although modern implementations have significantly minimized this risk, the possibility of leakage remains. Careful manufacturing and robust sealing are essential.

• Related Keywords: liquid metal thermal conductivity, PS5 Pro temperature testing, cooling system efficiency, thermal performance analysis.

Manufacturing and Assembly of the Liquid Metal Cooling System

The manufacturing and assembly of the PS5 Pro's liquid metal cooling system require exceptional precision and specialized techniques.

• Precision Engineering: The components must be manufactured to extremely tight tolerances to ensure perfect contact and efficient heat transfer.

• Liquid Metal Handling: Working with liquid metal requires specialized equipment and procedures to prevent contamination and spillage. The application process is highly controlled to avoid damage to components.

• Quality Control: Rigorous quality control measures are essential throughout the manufacturing process to ensure the reliability and safety of the system.

• Assembly Techniques: Specialized tools and techniques are employed to prevent air bubbles and ensure a uniform distribution of the liquid metal.

• Related Keywords: precision engineering, manufacturing process, liquid metal handling, quality control, assembly techniques.

Conclusion: Liquid Metal Cooling: The Future of High-Performance Consoles?

Our teardown of the Sony PS5 Pro's liquid metal cooling system reveals an innovative and highly effective solution to the thermal challenges of high-performance gaming. The superior thermal conductivity of liquid metal, combined with sophisticated engineering, results in significantly improved performance, reliability, and reduced noise. This technology showcases the crucial role of advanced cooling in pushing the boundaries of console performance. Its success suggests that liquid metal cooling will likely play an increasingly significant role in future high-performance electronics and next-generation gaming consoles. What are your thoughts on Sony's implementation of liquid metal cooling in the PS5 Pro? Share your comments below!
